QM Serie Endstufen

Features QM Serie:

  • Class-D Mosfet Mono Endstufe
  • Class-A/B Mosfet 4-Kanal Endstufe
  • High-Level Input mit Auto Turn On
  • Dual Differential Input System mit G.R.I.P.S.

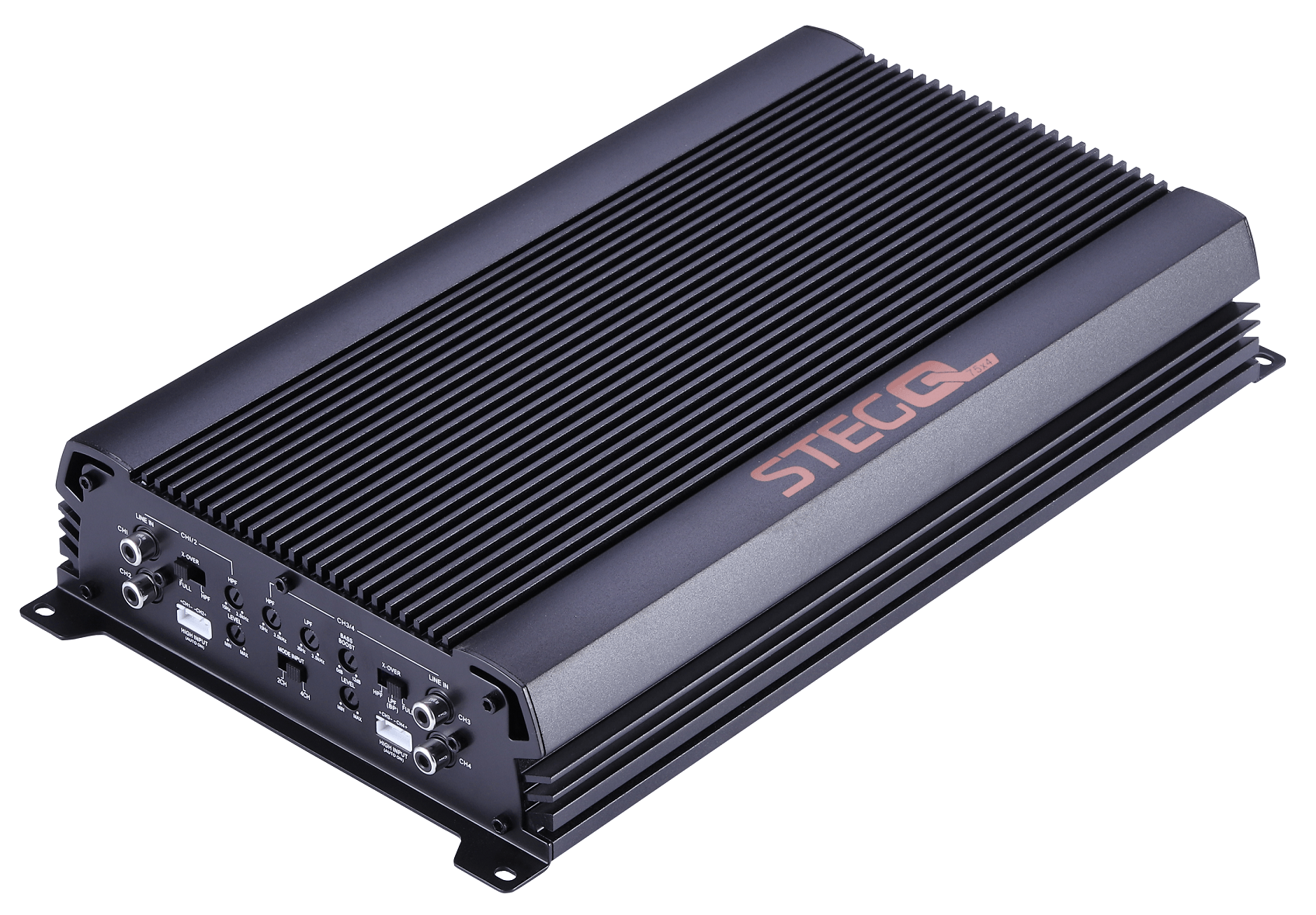

QM75.4  4 Channel power amplifier

- 4x75W RMS @ 4Ohm

- 4x105W RMS @ 2 Ohm

- 2x210W RMS @ 4Ohm

- LOW Pass 35Hz – 3500Hz / 12dB

- HIGH Pass 15Hz - 3500Hz / 12dB

- BASS BOOST 0 +12 dB @ 45Hz

- HighLevel Input with Auto-Turn On

- Abmessungen 334 x 56 x 184 mm

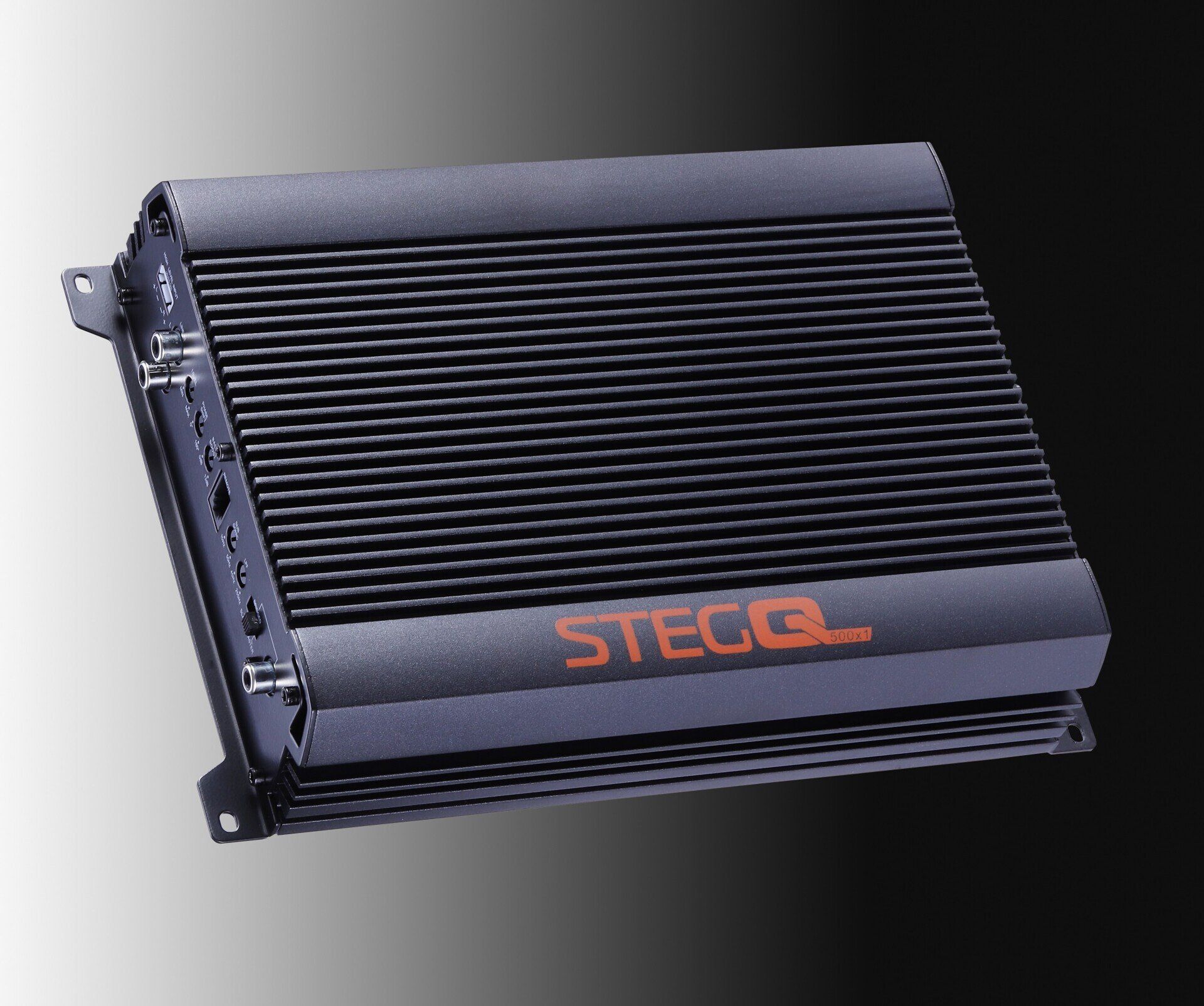

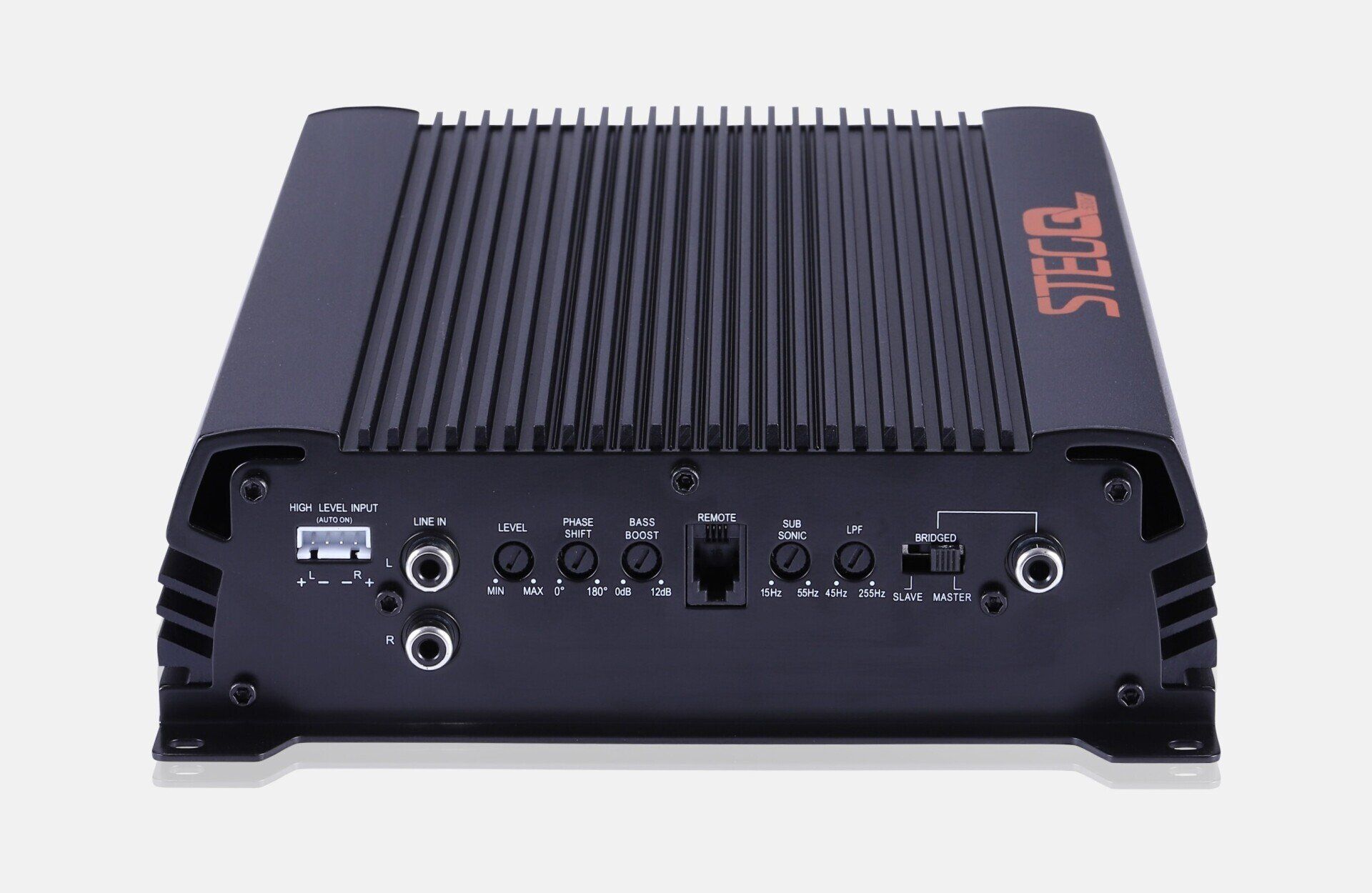

QM500.1 1 Channel Class-D amplifier

- 1x200W RMS @ 4 Ohm

- 1x350W RMS @ 2Ohm

- 1x500W RMS @ 1Ohm

- LOW Pass 45Hz – 255Hz / 12dB

- Subsonic 15Hz - 55Hz / 12dB

- BASS BOOST 0 +12 dB / 45

- Phase Shift stufenlos 0-180°

- HighLevel Input with Auto-Turn On

- Sub Level Regler im Lieferumfang

- Abmessungen 264 x 56 x 184 mm
