DST Serie Endstufen

Features DST Serie:

  • Class-D Mosfet Endstufe
  • High-Level Input mit Auto Turn On
  • Dual Differential Input System mit G.R.I.P.S.

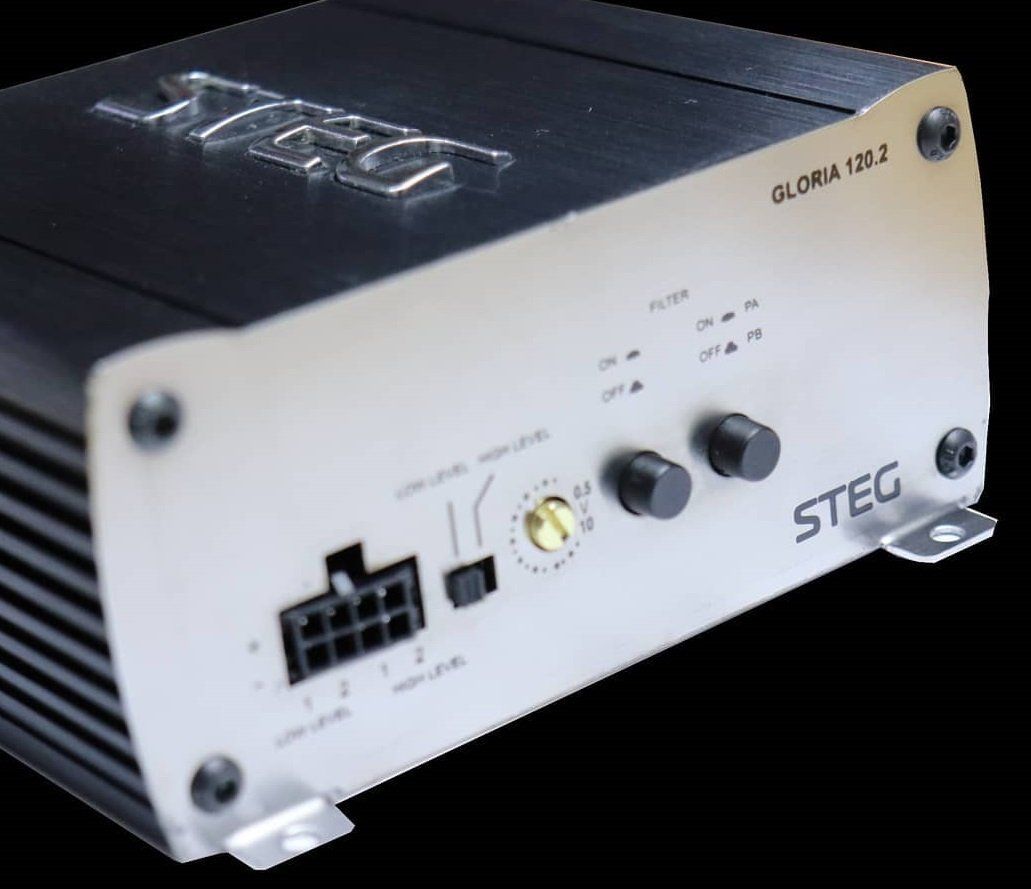

Gloria 120.2 2 Channel power amplifier

- 2 Kanal Micro Class-D HighEnd Endstufe
- 2 x 100W@4Ohm, 2 x 130W@2Ohm, 1 x 250W@4Ohm (10,5-14,4V)
- HighLevel Input 1,6 - 20V, LowLevel 0,5 - 5V
- HP/LP Filter 80 Hz, Overall efficiency: 87%, THD 0,026%
- Netzteil geregelt, Leistung temperaturgeregelt
- AutoTurn On
- made in Italy
L x B x H : 109 x 95 x 40mm

Gloria 60.4  4 Channel power amplifier

- 4 Kanal Micro Class-D Endstufe
- 4 x 60W@4Ohm, 2 x 60W@4Ohm + 1 x 180W@4Ohm
- HighLevel Input 1,6 - 20V, LowLevel 0,5 - 5V
- HP/LP/BP Filter 15 - 300 Hz +x20 Schalter
- AutoTurn On
L x B x H : 145 x 145 x 51mm

DST401-II 4 Channel power amplifier

- 4x75W RMS @ 4 ohms | 4x120w RMS @ 2 ohms

- 2x240w RMS @ 4 ohms BRIDGED

- High Level Input, Auto Turn On, 2/4Ch Input select

- LP/HP 50-200 Hz 12dB/Okt. BassBoost 0-12dB @ 45Hz

- 3-stufiger Input-Level  0,15 -1,5V / 0,5 - 5V / 1V - 10V

- L x B x H: 224 x 110 x 50 mm

S600 1 Channel power amplifier

- 1x300w RMS @ 4 ohms | 1x600w RMS @ 2 ohms
- High Level Input | Auto turn On
- Remote Bass Boost Controller
- LP 50-200Hz/12dB/Okt
- BassEQ 0-12dB / 45Hz
- Subsonicfilter fix 25Hz 24dB/Okt.
- 3-stufiger Input-Level  0,15 -1,5V / 0,5 - 5V / 1V - 10V
- L x B x H: 264 x 110 x 50 mm

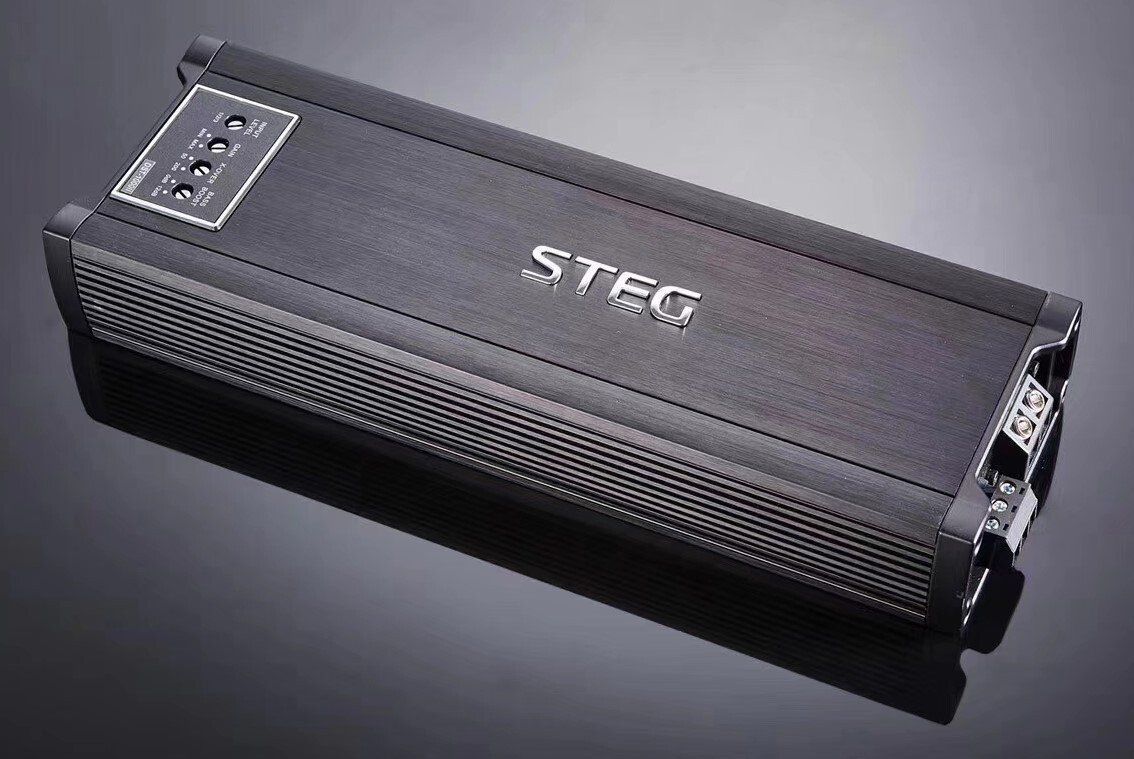

DST1000-II 1 Channel power amplifier

- 1x500w RMS @ 4 ohms | 1x1000w RMS @ 2 ohms
- High Level Input | Auto turn On
- Remote Bass Boost Controller
- LP 50-200Hz/12dB/Okt
- BassEQ 0-12dB / 45Hz
- Subsonicfilter fix 25Hz 24dB/Okt.
- 3-stufiger Input-Level  0,15 -1,5V / 0,5 - 5V / 1V - 10V
- L x B x H: 324 x 110 x 50 mm

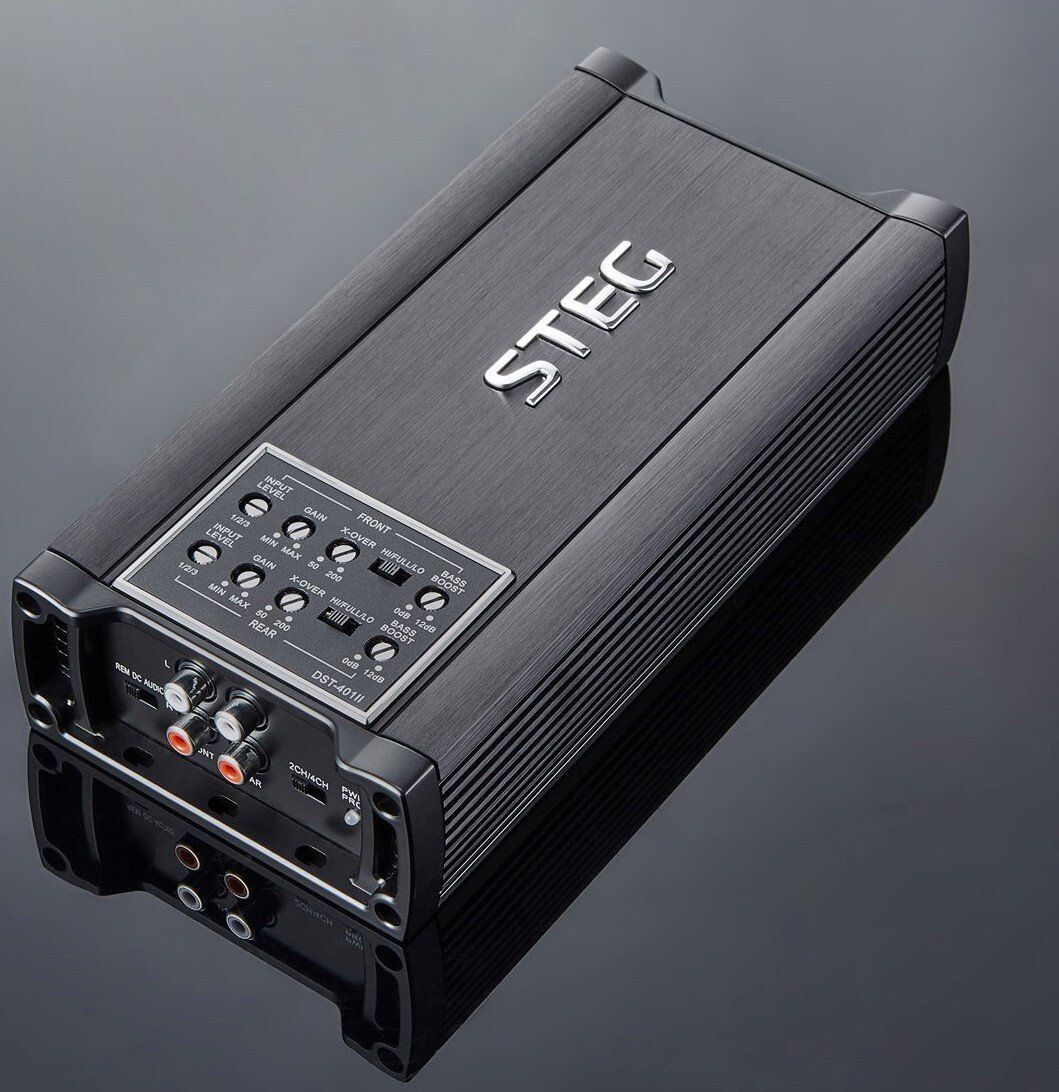

DST401D 4 Channel power amplifier

- 4x75W RMS @ 4 ohms

- 4x120w RMS @ 2 ohms
- 2x240w RMS @ 4 ohms BRIDGED
- High Level Input, Auto Turn On, 2/4Ch Input select
- CH1/2 HP 20-4000 Hz 12dB/Okt.

- CH3/4 HP 50-4000 Hz 12dB/Okt. , BP/LP 10-5000Hz

- BassBoost 0-12dB @ 45Hz
- L x B xH: 23 cm x 13,5cm x 5.2 cm

DST202D 2 Channel power amplifier

-  2x100w RMS @ 4 ohms   2x195w RMS ohm
- 1x390w RMS @ 4 ohms BRIDGED
- High Level Input | Auto turn On
- LP/HP 50-250Hz /12dB/Okt. BassBoost 0-12dB @ 24Hz
- L x B xH: 23 cm x 13,5cm x 5.2 cm
